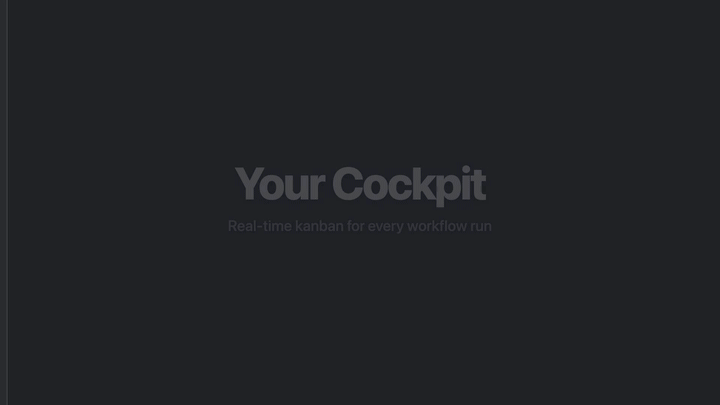

Cockpit

A workspace-scoped kanban view for monitoring DAG runs across dates. Available at /cockpit in the Web UI.

Page Structure

The page renders two areas unconditionally:

1. Toolbar -- workspace selector, template selector
2. Kanban board -- DAG runs grouped by date, split into status columns

Workspace Selector

A dropdown listing all workspaces by name.

• "All workspaces" -- deselects the workspace filter, shows all DAG runs regardless of workspace tag
• "New workspace" -- opens an inline text input; only visible when the current user has the canWrite permission (checked via useCanWrite() from the auth context)
• Delete -- trash icon next to the currently selected workspace; opens a confirmation dialog before deleting

The selected workspace name is persisted to localStorage under the key dagu_cockpit_workspace. On page load, the previously selected workspace is restored from this key.

Workspace names are sanitized on creation: characters not matching [a-zA-Z0-9_-] are stripped.

See Workspaces for the API and storage details.

Template Selector

A dropdown to browse and select a DAG definition. Selecting a DAG opens the preview modal.

• Search -- text input with 300ms debounce, queries GET /api/v1/dags with name filter and perPage=50
• Tag filter -- clickable tag badges below the search input; tags with workspace= prefix are hidden from the filter row
• Grouping -- DAGs are grouped by their group field, sorted alphabetically; ungrouped DAGs appear last under (ungrouped)
• Workspace filtering -- when a workspace is selected, DAGs with a workspace=X tag that doesn't match the selected workspace are excluded; DAGs with no workspace= tag are always shown
• Keyboard -- ArrowDown/ArrowUp to navigate, Enter to select, Escape to close and reset filters

Each item shows:

• DAG name (red with warning icon if it has load errors)
• Description (truncated to one line)
• First 3 tags as badges, with +N overflow indicator
• Parameter count (e.g., 3p)

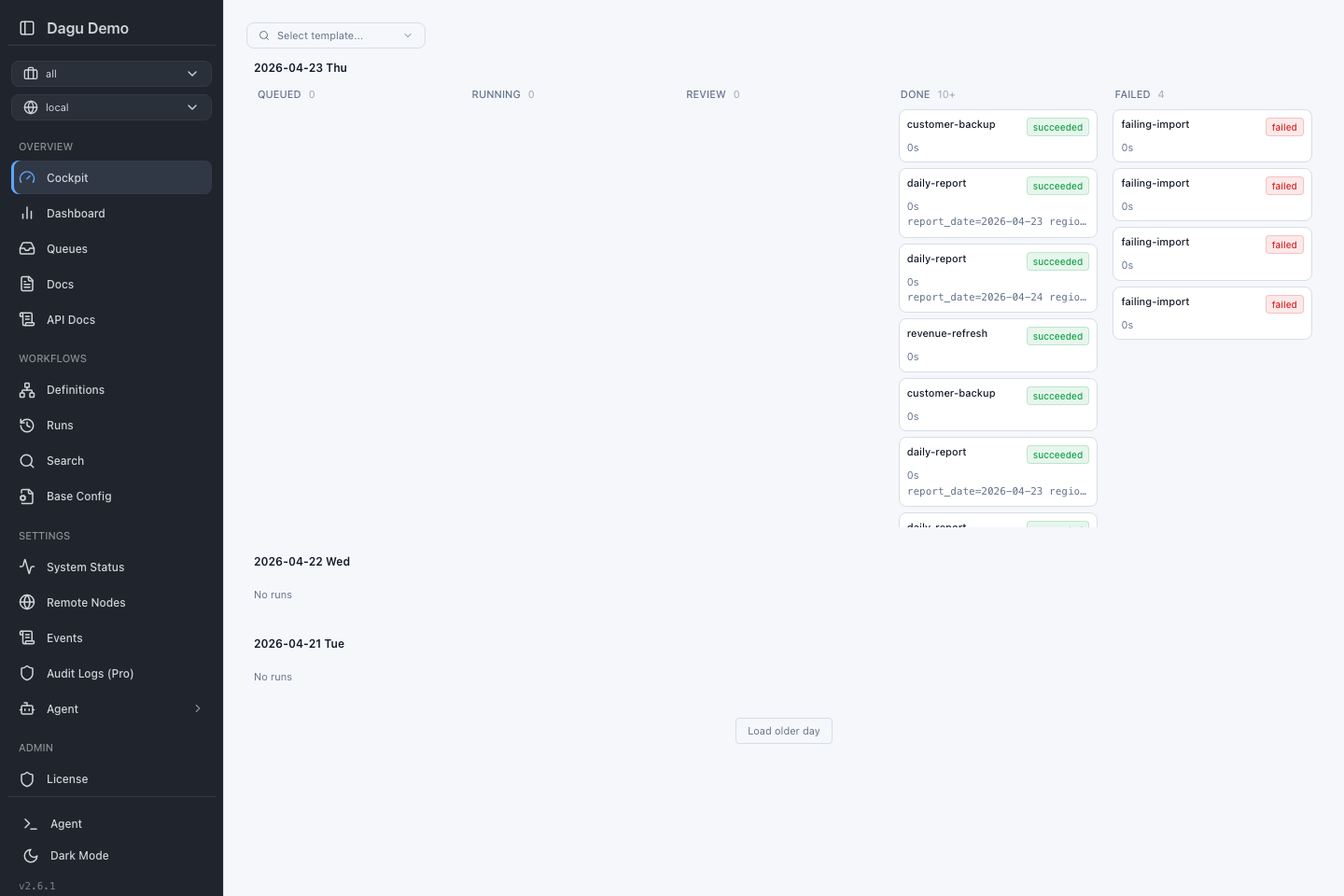

Kanban Board

DAG runs for each date are grouped into four columns:

Column	Statuses
Queued	queued, not_started
Running	running, waiting
Done	success, partial_success
Failed	failed, aborted, rejected

Date Sections

• Initial load -- today and yesterday
• Infinite scroll -- scrolling to the bottom loads the previous day, up to 30 days back
• Real-time updates -- today's section uses Server-Sent Events (SSE); past dates use a single REST fetch with refreshInterval: 0 (no polling)
• Reset -- switching workspaces resets to today + yesterday

Kanban Cards

Each card displays:

Field	Description
Name	DAG run name, truncated
Status	Color-coded status chip with label
Elapsed time	Formatted as Xs, Xm Ys, or Xh Ym. For running status, a Ticker component re-renders every 1000ms.
Parameters	First 60 characters, monospace font, truncated with ...

Clicking a card opens the DAG Run Details modal (same modal used elsewhere in the UI, not the DAG Preview modal).

Cards use Framer Motion layoutId animations keyed by dagRunId.

DAG Preview Modal

Opens as a side panel from the right edge, covering 3/4 of the viewport (md:w-3/4), full width on mobile. Slides in with a 150ms CSS transition.

The modal renders the same DAGDetailsContent component used on /dags/{fileName}/spec, with real-time SSE updates via useDAGSSE.

Before rendering the start/enqueue form, Cockpit fetches the full DAG details from GET /api/v1/dags/{fileName}. That ensures the modal uses the same runConfig, defaults, and paramDefs metadata as the full DAG details page.

When paramDefs is present, enqueue/start controls are rendered as typed inputs, and each param description is shown inline below its control as help text. When it is absent, the modal falls back to the raw parameter editor.

Enqueue Behavior

When enqueueing a DAG from the preview modal, the workspace tag workspace=<name> is injected into the YAML spec before submission:

1. The workspace name is sanitized: name.replace(/[^a-zA-Z0-9_-]/g, '')
2. The tag is injected into the YAML spec using string manipulation:
   • If a tags: key exists with array-style values (e.g., - tag1), a new - workspace=<name> line is appended
   • If a tags: key exists with scalar value (e.g., tags: "foo,bar"), it becomes tags: "foo,bar,workspace=<name>"
   • If no tags: key exists, tags:\n - workspace=<name>\n is appended to the end
3. The modified spec is submitted via POST /api/v1/dag-runs/enqueue

If no workspace is selected (selectedWorkspace is empty), the enqueue handler returns early without submitting.

Keyboard Shortcuts

Key	Action
Escape	Close the modal
f or F	Navigate to the DAG in fullscreen view (/dags/{fileName}/spec)
Cmd/Ctrl + Click on fullscreen button	Open in new tab via window.open

Shortcuts are suppressed when focus is inside an input/textarea (checked via shouldIgnoreKeyboardShortcuts()), or when Cmd/Ctrl is held.

Data Flow

Workspace selected
  -> localStorage: dagu_cockpit_workspace = <name>
  -> Tag filter: workspace=<name>
  -> GET /api/v1/dag-runs?remoteNode=<node>&tags=workspace%3D<name>&fromDate=<unix>&toDate=<unix>
  -> groupByStatus() -> Kanban columns

For today's date, SSE replaces polling:

SSE {apiURL}/events/dag-runs?remoteNode=<node>&tags=workspace%3D<name>&fromDate=<unix>&toDate=<unix>

The fromDate and toDate are unix timestamps representing the start and end of the day, adjusted for the configured timezone offset (tzOffsetInSec).
